The front face recognition intelligence
2016-11-10 17:07:38  Release  Browsing times:

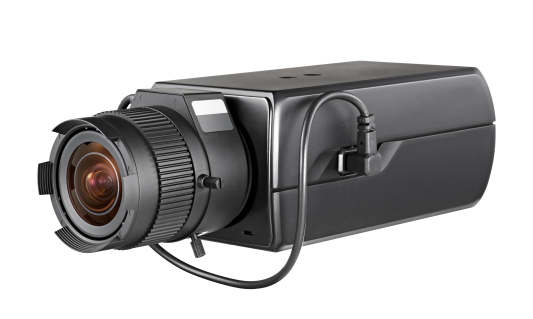

  Face recognition intelligent front-end is consist of shield and hd smart cameras, smart front end shield protection grade IP66 is dustproof, waterproof drops, storm surge, etc; The built-in progressive-scan CMOS camera by 2 million pixels high definition, high resolution, low illumination and high frame rate, high degree of color reduction, etc. All products with independent intellectual property rights.

The main features

 Using 1/1.8 of an inch 2.3 million pixels progressive-scan CMOS intelligent high-definition cameras;

 Support both h. 265 and h. 264 encoding, maximum output Full HD 1920 * 1920 @ 25 FPS real-time image, low latency, low bit rate;

 Use the video compression techniques such as ROI, SVC, compression ratio is high, suitable for flexible processing, low latency, low bit rate;

 Support double stream output at the same time, at the same time the output h. 265 and h. 264 stream two-way hd stream can be independently set different hd resolution, frame rate and bit rate.

 Bots curing and, the biggest local store 64 gb TF card, support capturing images broken network continuingly;

 Support 2 d / 3 d digital noise reduction function;

 Support the face detection and classification of the non-motor vehicle lanes (age, gender and whether the glasses) and capture; Support personnel classification statistical techniques;

Product advantage

1, Using the camera hardware huitong company advantage, develop specialized intelligent front-end face recognition, and face region, on the camera image quality improved face recognition accuracy. Internal tests show that compared with ordinary camera can improve accuracy of 5-10%.

2, Compared with the ordinary camera, face recognition of intelligent front-end output images without h. 264 codec compression, image quality is higher, normally face recognition accuracy can improve 3% ~ 3% (internal) test.

3, Rich experience in installation and construction materials and guidelines. Through the professional construction, installation, commissioning, guarantee human face image quality, improve face accuracy.

4, With independent patent face feature recognition and tracking algorithms, and makes the front-end equipment with intelligent, more make snap the picture quality is more suitable for application in human face recognition system.

Technical parameters




The camera

The sensor type

1/1.8" Progressive Scan CMOS

Minimum illumination

color 0.002Lux@(F1.2,AGC ON)

Black and white 0.0002Lux @(F1.2,AGC ON)

The shutter

1 second to 1/100000 of a second

The camera interface type

C/CS interface

Automatic aperture

DC drive

Day and night conversion mode

ICR infrared filter chip

Digital noise reduction

3 d digital noise reduction

Compression standard

Video compression standard

H.264 / MPEG4 / MJPEG

The video compression bit rate



Image format


Maximum image size


Frame rate

25fps(1920 × 1080)

Image set

Saturation, brightness, contrast, white balance, adjustable gain through software

Network function

Storage capabilities

Support SD/SDHC, USB storage devices

Support agreement


The NTP support FTP upload

Common functions

Heartbeat, password protection, school (NTP)

Capture function

Image format

The JPEG coding, image quality can be set

Intelligent identification

Face detection and classification


Communication interface

A RJ45 10 m / 100 m / 1000 m adaptive Ethernet front-end ports, a RS - 485 interface, a RS - 232 interface

External interface

4-way IO input interface, three pairs of IO output interface, can be used as an alarm input, output, flash control interface)

Synchronous supply to SYNC

Video output

1Vp-p Composite Output(75Ω/BNC)(BNCwithSDIoptional )

General specification

Working temperature and humidity

- 30 ℃ ~ 70 ℃, humidity is less than 90% (without condensate)

The power supply


Power consumption

8.5 W MAX (when switching ICR, 11 W MAX)



The weight of the
